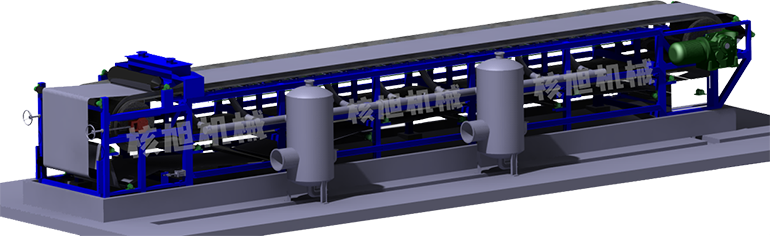

Brief Introduction of Equipment：
The rubber belt vacuum filter is a high-efficiency separation equipment that uses filter cloth as the filter medium, makes full use of the gravity of the material, and relies on vacuum negative pressure as the power to achieve solid-liquid separation; the equipment is structured, and the filtering section is arranged along the horizontal length direction; A fixed vacuum box is used. The filtration, cake washing, slag unloading, and filter cloth cleaning of the equipment in the production process are continuously completed with the operation of the tape; the equipment can adapt to materials of different concentrations, and the mother liquor and filter cake washing liquid can be collected in stages, with high production capacity and filtration High efficiency, good washing effect, low moisture content of filter cake and other advantages. At the same time, the belt speed, feed volume, slurry concentration, washing water volume, vacuum degree, washing zone and drying zone can all be selected ideal parameters according to production needs. The equipment has few vulnerable parts and low failure rate, which can realize long-period continuous operation, stable operation, simple operation and low labor intensity. After years of improvement and perfection, the rubber belt vacuum filter has reached the international advanced level in technology and is widely used in electric power environmental protection, mining, chemical, metallurgy, papermaking, food, pharmaceutical and coal industries.
working principle：
Selection Guide：
1. Select the equipment model according to the solid-liquid ratio, processing capacity, solid particle size, viscosity, and bulk density of the material. 2. Select the material of the flow-through parts according to the degree of corrosion of the material, and select the filter medium according to the solid particle size and the temperature of the material. 3. For materials containing active gas or steam, semi-closed and fully closed models can be selected. 4. The material to be washed can be washed cocurrently or countercurrently. For special washing materials, the leaching model should be selected. 5. It is recommended to do a small test for unused materials in the same industry. The processing capacity of the same filter area is usually 1.2 times that of the PBF belt vacuum filter. 6. The drainage method can achieve high or zero drainage according to the installation height

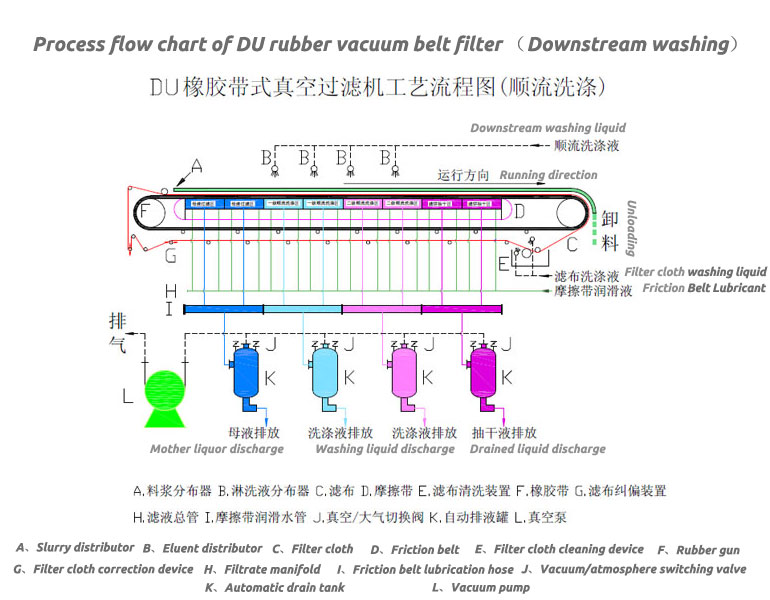

Basic craft：

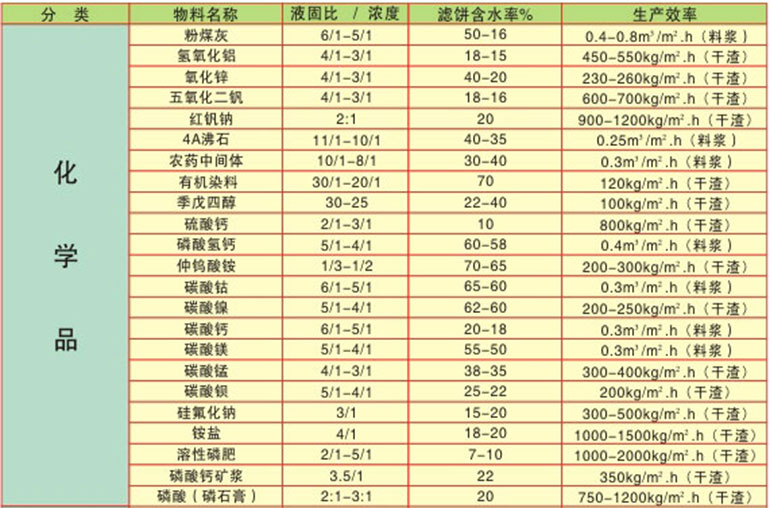

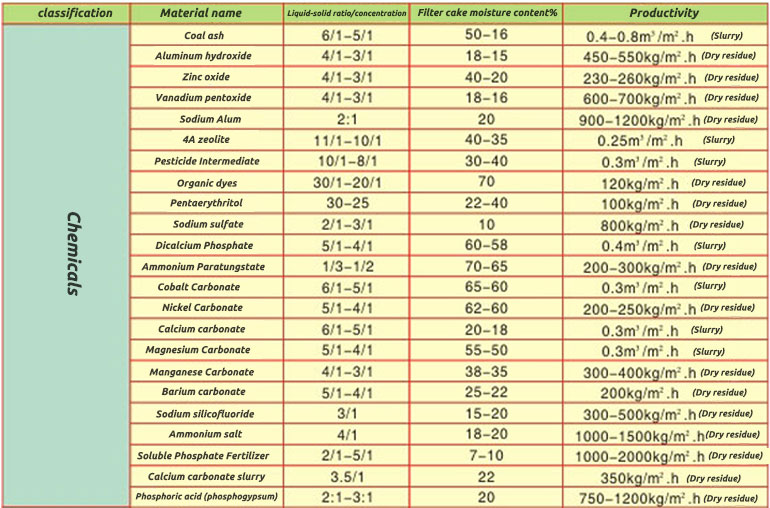

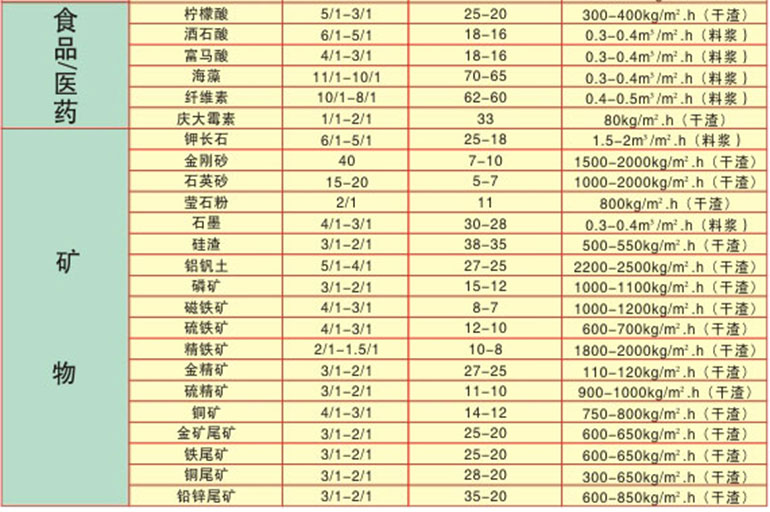

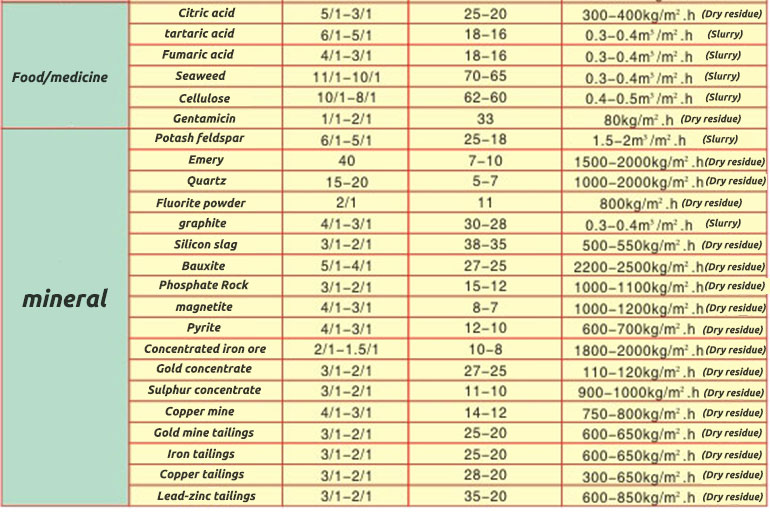

Table of typical application examples of DU rubber belt vacuum filter：

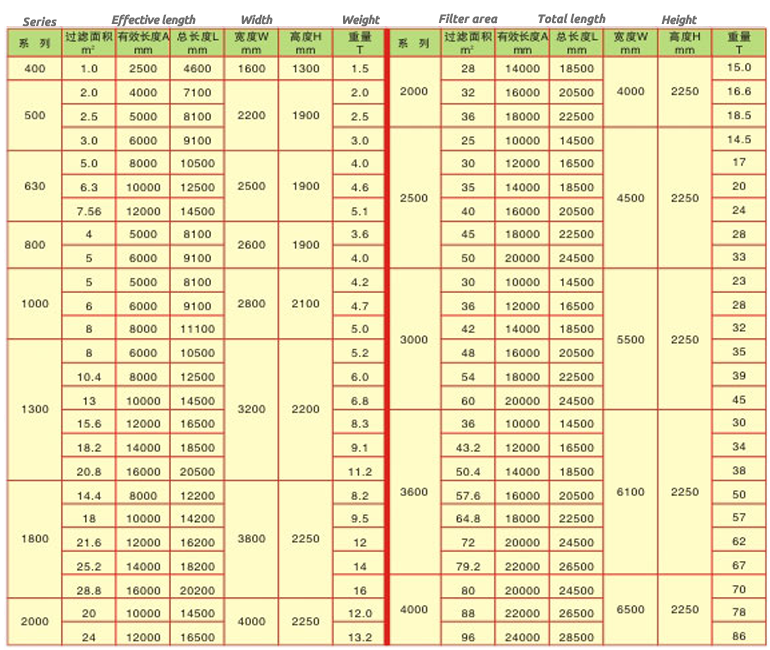

Basic technical parameters of DU rubber belt vacuum filter：
*If you have other special requirements, you can communicate and customize。
