Equipment introduction:
The PBF belt vacuum filter is a highly automated filtration and separation equipment developed in the 1980s. The equipment uses filter cloth or filter screen as the filter medium, makes full use of the gravity of the material, and relies on vacuum negative pressure as the power to achieve solid-liquid separation. Hot air drying and mechanical extrusion can solve many problems in the chemical industry. The equipment is structured and the filter section is arranged along the horizontal length direction; the generation process of filtration, filter cake washing, slag discharge, and filter cloth cleaning can be completed continuously; The equipment can be adapted to materials of different concentrations, and the mother liquor and filter cake washing liquid can be collected in stages, with excellent washing effect. The equipment has few vulnerable parts and low failure rate, which can realize long-period continuous operation, stable operation, simple operation and low labor intensity. After years of improvement and perfection, the PBF belt vacuum filter has been widely used in environmental protection, mining, chemical, fertilizer, paper, food, pharmaceutical and metallurgical industries.
working principle:
The PBF belt vacuum filter uses filter cloth as the filter medium and makes full use of material gravity and vacuum suction to achieve solid-liquid separation. The whole detachable filter disc is used as the vacuum chamber, and the filter cloth is driven by the driving roller to run continuously. At the beginning of the filter stroke, the filter disc runs synchronously with the filter cloth in a vacuum state; in a non-vacuum state, the filter disc and the filter cloth operate relative to each other. The materials are evenly distributed on the filter belt of the vacuum filter disc through the slurry distributor, and the slurry on the filter cloth is suction filtered under the action of vacuum suction. When the vacuum filter disc moves for a certain distance, the control system cuts off the vacuum, the vacuum filter disc quickly returns to the original position under the drag of the air cylinder, and the filter cloth continues to run under the drive of the driving roller, so as to realize the suction filtration of the mother liquor and the filter cake. In the process of washing and draining, the filter cake is removed by the scraper device at the unloading place, the filter cloth is regenerated after cleaning, and then passes through a set of support rollers and the correction device to enter the filter area again; the filtrate follows the filter in the collecting tank. Eject when the tray returns.
Selection guide:
1. Select the equipment model according to the solid-liquid ratio, processing capacity, solid particle size, viscosity, and bulk density of the material. 2. Select the material of the flow-through parts according to the degree of corrosion of the material, and select the filter medium according to the solid particle size and the temperature of the material. 3. For materials containing active gas or steam, semi-closed and fully closed models can be selected. 4. For the materials that need to be washed, it can be washed co-currently or counter-currently. For special washing materials, the leaching model should be selected. 5. For materials with poor filterability and high viscosity, thin-layer rapid filtration should be selected. 6. It is recommended to do a small test for materials that have not been used in the same industry. 7. The liquid discharge method can realize high or zero discharge according to the installation height.
Basic craft:
PBF type belt vacuum filter typical application example table ：

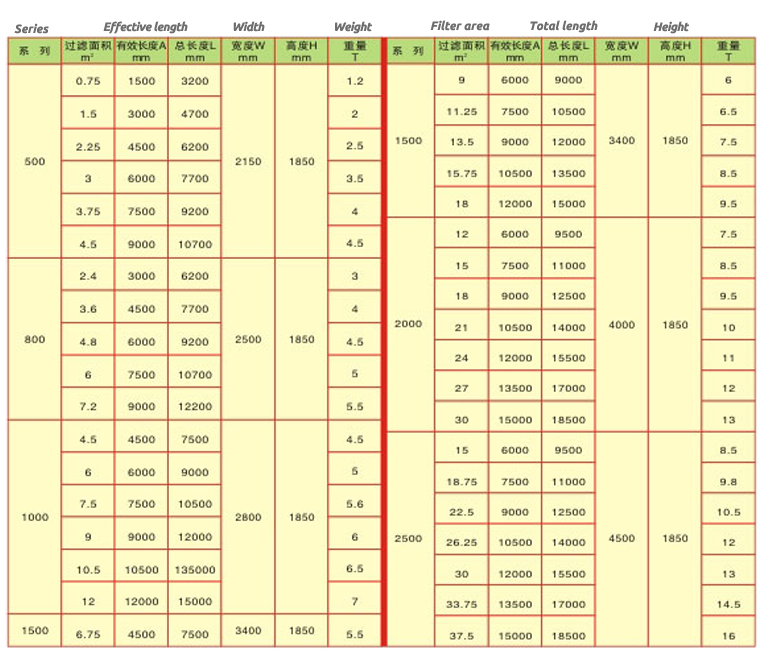

Basic technical parameters of PBF belt vacuum filter:
*If you have other special requirements, you can communicate and customize 。
