Equipment introduction:

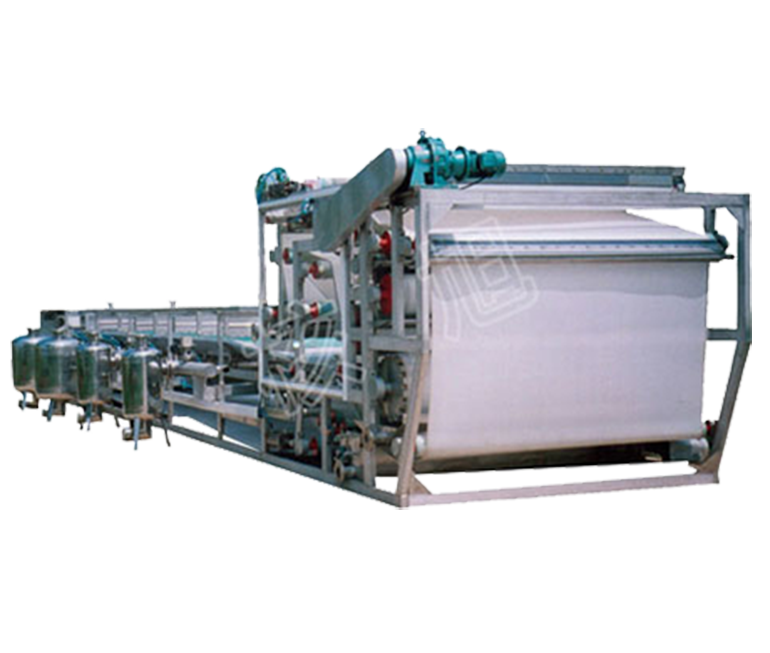

The DZY belt press vacuum filter is a new type of filtration equipment with high degree of automation that combines the PBF series and the DY series. High-efficiency separation equipment with pressure to achieve solid-liquid separation is especially suitable for materials with a filter cake compression ratio greater than 2:1 (at 10Kpa), which can fully reduce the water content of the filter cake.
working principle：
At the beginning of the filter stroke of the DZY belt press vacuum filter, the filter disc runs synchronously with the filter belt in a vacuum state, and the material is evenly distributed on the filter belt of the vacuum filter disc through the slurry distributor, and is carried out under the action of vacuum suction. Suction filtration. Subsequently, the semi-dry filter cake continues to run under the drag of the filter cloth and enters the press roll for squeezing to fully reduce the moisture content of the filter cake. The filter cake after filtering, washing and squeezing is stripped and removed by the scraper device. After the filter cloth is cleaned by the regeneration device, it enters the next cycle again. The filtrate from the collecting tank is discharged at the same time as the filter pan returns, and the filtrate in the squeeze roller flows into the collecting pan. Through such repeated suction filtration, washing, re-suction filtration, and extrusion, the purpose of solid-liquid separation is realized.
Selection guide:
1. Select the equipment model according to the solid-liquid ratio, processing capacity, solid particle size, viscosity, and solid heap specific gravity. 2. According to the PH value of the material, select the material of the flow-through parts, the solid particle size, and the temperature of the material to select the filter medium. 3. It is suitable for materials with a filter cake compression ratio greater than 2:1 (at 10Kpa). 4. The same materials that have not been used in the same industry should be tested first before equipment selection. 5. Priority is given to models with the effective width of the national standard filter. Basic craft:
